High Speed Doors
High Speed Doors
High Speed Doors are available in widths up to 12m and in height up to 7m.
High Speed Doors are manufactured to the following requirements:
Strong PVC (700-1700 g/m2)
Lightweight and flexible curtains that are safe when colliding with heavy equipment, like forklifts.
Opening and closing speeds can reach 2.5 m/s. Speed can be adjusted as required.
Equipped with safety features in accordance with EN-3241 CE.

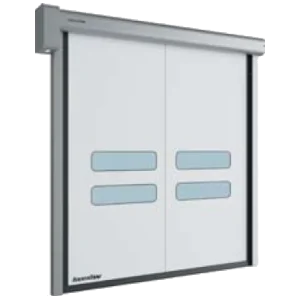

SpeedRoll SDI
Width up to 6m
Height up to 6m
Application: universal — indoor openings in industrial, storage, and commercial facilities.
Design: door structure is made of galvanized steel; drive shaft — galvanized steel D = 90/140 mm; track guides — extruded polyethylene; curtain — polyester material covered with PVC, 900 g/m2 density, PVC thickness 0.9 mm*; vision panels — 1 mm thick transparent PVC (optional).
* The actual thickness is from 0.8 to 0.9 mm.
SpeedRoll SDO
Width up to 6m
Height up to 6m
Application: universal — for outdoor openings in industrial, storage, and commercial facilities.
Design: door structure is made of galvanized steel; drive shaft — galvanized steel D = 90/140 mm; track guides — extruded polyethylene; curtain — polyester material covered with PVC, 900 g/m2 density, PVC thickness 0.9 mm*; vision panels — 1 mm thick transparent PVC (optional).
* The actual thickness is from 0.8 to 0.9 mm.

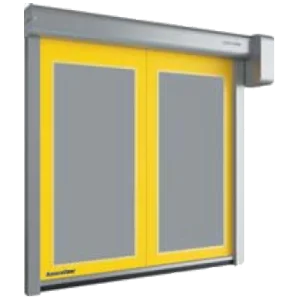

SpeedRoll SDF
Width up to 4m
Height up to 4m
Application: universal — food industry.
Design: door structure is made of stainless steel AISI 304; drive shaft — stainless steel AISI 304, D = 90/140 mm; track guides — extruded polyethylene; curtain — polyester material covered with PVC, 900 g/m2 density, PVC thickness 0.9 mm*; vision panels — 1 mm thick transparent PVC (optional).
* The actual thickness is from 0.8 to 0.9 mm.

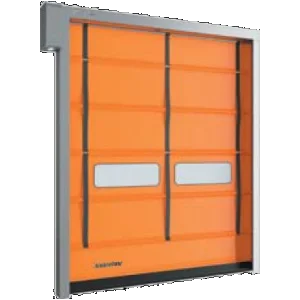

SpeedFold SDF
Width up to 12m
Height up to 7m
Application: indoor/outdoor openings in industrial, storage, and commercial facilities. For openings with higher
wind load.
Design: jambs, covers, tubes are made of galvanized steel; curtain — polyester material covered with PVC, 900 g/m2 density, PVC thickness 0.9 mm*; vision panels — 1 mm thick transparent PVC (optional); the door opening is provided by belts system.
* The actual thickness is from 0.8 to 0.9 mm.

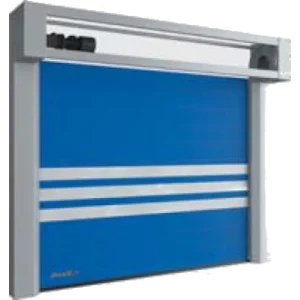

Spiral Door HSSD
Width up to 6m
Height up to 6m
Application: indoor/outdoor openings in industrial, storage, and commercial facilities; for openings with higher
wind load.
Design: door structure is made of galvanized steel; door curtain consists of aluminium sandwich panels 40 mm; track guides — aluminium.
General Specifications for High Speed Doors
Wind load – Speedroll SDI/SDO/SDF Spiral Door HSSD 3 class SpeedFold SDF 4 class (EN12424:2000)
Opening Speed – Speedroll SDI/SDO/SDF 1.8m/s SpeedFold SDF 1.0m/s Spiral Door HSSD 1.5m/s
Working Temperature Range – from -15 to +50 °C — if drive is installed indoors; from -5 to +50 °C — if drive is installed outdoors; from -30 to +50 °C — with drive and side frame heating systems no windows in use for -5 °C and lower
Operating Life – Speedroll SDI/SDO/SDF SpeedFold SDF 1500000 cycles Spiral Door HSSD 3000000 cycles
*Based off a 3x3m door

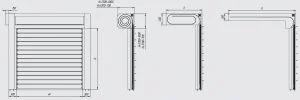

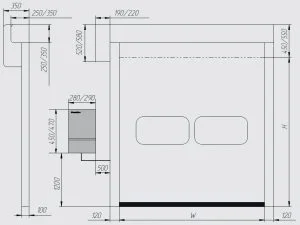

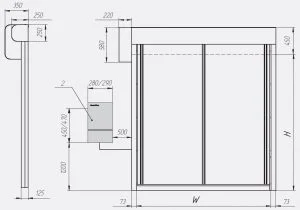

Mounting Clearances
